Thin Glass, Microsheets, & Display Glass

Thin and ultrathin glass materials for special technical applications

Here you can find an overview of our thin, ultra-thin, and microsheet glass products. These specialty flat glass materials are available within various thickness ranges. Some of the ultra-thin glass types are available down to a minimum thickness of 30 μm. Below please find the links to our datasheets related to these specialty glass materials:

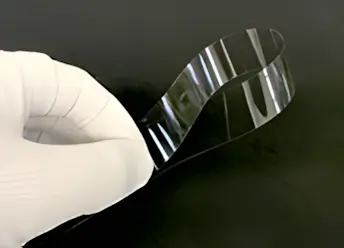

Home page of thin glass. The picture shows a flexible ultra-thin glass.



D263 T


This thin glass D 263 T is made of the purest raw materials. It is very flat, offers excellent optical properties and chemical resistance. This glass material is available at ultra-thin thicknesses down to 30 µm. The superior quality of D 263 T allows its use as a display glass.

Thickness range 0,03 - 1,10 mm (0,0012 - 0,043") More...



AF 32® eco alkali-free-glass

AF 32® eco is a new ultra-thin aluminum-borosilicate glass from SCHOTT that contains zero alkalies in synthesis. The material has a very similar coefficient of expansion as silicon. This glass is an ideal choice for the manufacturing of micro-optics, optoelectronics, and ultra-thin glass wafers.

Thickness range 0,10 - 0,50 mm (0,004 - 0,043") More...



AS 87 eco

The new ultra-thin alumosilicate glass AS 87 eco is a SCHOTT glass that offers an increased transmissivity in the UVB range. It features a low microroughness and a small total thickness variation (TTV).

Thickness range 0,05 - 0,35 mm (0,002 - 0,0138") More...



MEMpax®

MEMpax® borosilicate thin glass from SCHOTT has the extraordinary technical properties of borosilicate flat glass. Furthermore, MEMpax® offers very tight thickness tolerances lower than those usually obtained by mechanical polishing. It is a perfectly suited glass for anodic bonding processes.

Thickness range 0,20 - 0,50 mm (0,008 - 0,0197") More...



AF45

The alkali-free thin glass from SCHOTT has a low thermal resistance, low coefficient of expansion, and high light transmission. SCHOTT discontinued AF 45 ultra-thin glass many years ago. However, the 0,70 mm thickness is still available from us at the moment.

Glass thickness 0,70 mm (0,0276") More...



EAGLE XG®

EAGLE XG® is an alkali-free thin glass. Due to its excellent technical properties, it is suitable for the production of wafer-level optics and for numerous applications in semiconductor technology. More...



1737F low alkali glass

1737F is a zero alkali aluminum-silicate display glass for higher temperatures and temperature fluctuations. The quality glass from CORNING in America is suitable for COG (chip-on-glass) processes in electronics, micro-optics, and substrates for filters.

Glass thicknesses 0,70 mm and 1,10 mm (0,0276" and 0,043") More...



EAGLE2000 lightweight, low alkali glass

EAGLE2000 is a lightweight alkali-free alkaline earth boro-aluminum-silicate glass. The thin glass molten by CORNING in America offers excellent flatness, low warpage, and high surface quality. It is an ideal choice for the fabrication of optics, micro-optics, and applications in display technology.

Glass thicknesses 0,70 mm and 1,10 mm (0,0276" and 0,043") More...



Selected white float glass

Our selected float glass is an inexpensive flat and universal thin sheet glass with excellent surface quality, a reduced iron content, and exceptional optical properties made by advanced drawing technology. The material is often used as a substrate for filter-, mirror-, and anti-reflection coatings.

Thickness range 0,40 - 4,00 mm (0,0157 - 0,157") More...



0211

0211 is an alkali-reduced ultra-thin soda-lime sheet glass from CORNING America, made by a fire-polishing process. CORNING discontinued the production of 0211 a long time ago. Only the remaining stocks are still available.

Glass thickness 0,30 mm (0,012") More...



AF37

AF37 is an alkali- and arsenic-free aluminum silicate display glass with excellent flatness, heat resistance, and good chemical resistivity. SCHOTT discontinued this glass shortly after its introduction. We still have small remaining stocks.

Glass thickness 0,70 mm (0,0276") More...



Most of the above-listed thin and ultra-thin glasses have a high surface quality suitable for display applications without additional polishing processes. The vast majority of these materials offer a better flatness than what is achieved with a mechanical polishing process at such small thicknesses. An excellent flatness, a very smooth surface, and a very low micro-roughness make them ideal for glass applications in electronics and semiconductor technology, such as glass wafers. Moreover, substrates for optical coatings like dielectric mirrors, filters, or anti-reflection coatings are often based on these glass materials. If you are not sure, which thin glass is suitable for your application, please use our information request form. Thin-glass is our daily business, and we are happy to help you select the suitable material for your application design.



None of the listed ultra-thin glasses, micro-sheets, or display glasses match your application?

If you cannot find the thin or ultra-thin glass you are looking for or the desired glass thickness here, please use our inquiry form to send us an inquiry by e-mail, Fax, or give us a call. Our company also has other thin-glass, ultrathin glass, and specialty glass from SCHOTT, CORNING, and many other well-known manufacturers in the extensive product range, which may not be listed here.
